SPEC:

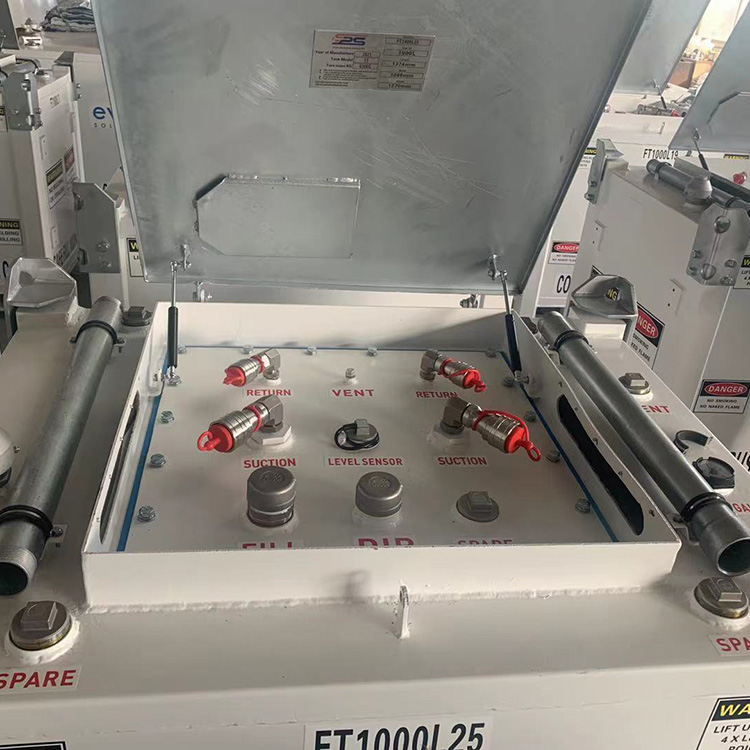

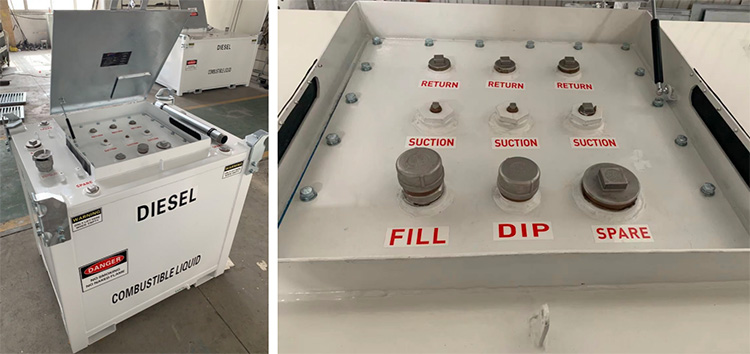

INSIDE LID
• 1 x 2’’ Fill point
• 1 x 2’’ Dip
• 1 x 3” Spare socket
• 2 x 1/2” Suction
• 1 x 1” Suction
• 3 x 1.5” Return ports
EXTERIOR OF TANK
• 4 x 2” Spare socket
• 1 x 3” Spare socket
• 1 x 2” Bund vent
• 1 x 2” Free vent
• Galvanized vent pipe
• 2 x Earthing
• 4 x Galvanized lifting lugs
• 2 x 45mm dia hose enter cut out to manhole
Model | Gross volume | Safe fill Litres | Length(mm) | Width(mm) | Height(mm) | Baffled |
T0.6 | 660L | 600L | 1374 | 1086 | 810 | NO |
T1 | 1100L | 1000L | 1374 | 1086 | 1270 | NO |
T2 | 2250L | 2000L | 2294 | 1086 | 1270 | YES |
T3 | 3300L | 3000L | 2294 | 1592 | 1270 | YES |
T4 | 4500L | 4000L | 2294 | 2084 | 1270 | YES |
T5 | 5500L | 5000L | 2456 | 2294 | 1270 | YES |
T6 | 6600L | 6000L | 2966 | 2294 | 1270 | YES |
T8 | 8800L | 8000L | 3916 | 2294 | 1270 | YES |
T10 | 11000L | 10000L | 4867 | 2294 | 1270 | YES |
FEATURES:
Unique tank in tank design approved to AS1940, AS1692
4 x Lifting Points
Removable manway for ease of maintenance.
Self bunded design
UN31A/Y approved for the transport of Dangerous Goods by Road, Rail and Sea, Packaging Groups II & III. (PT0.66 - PT2.25)
Lockable hatch lid with access for hoses, under hatch sockets and suction spears can operate with the hatch closed.
Additional 50mm (2”) hose entry and exit sockets on top of tank.
Secure under-hatch generator hose suction and return points, to accommodate up to 3 generators.
4 x way forklift pockets.
Incremental dipstick.

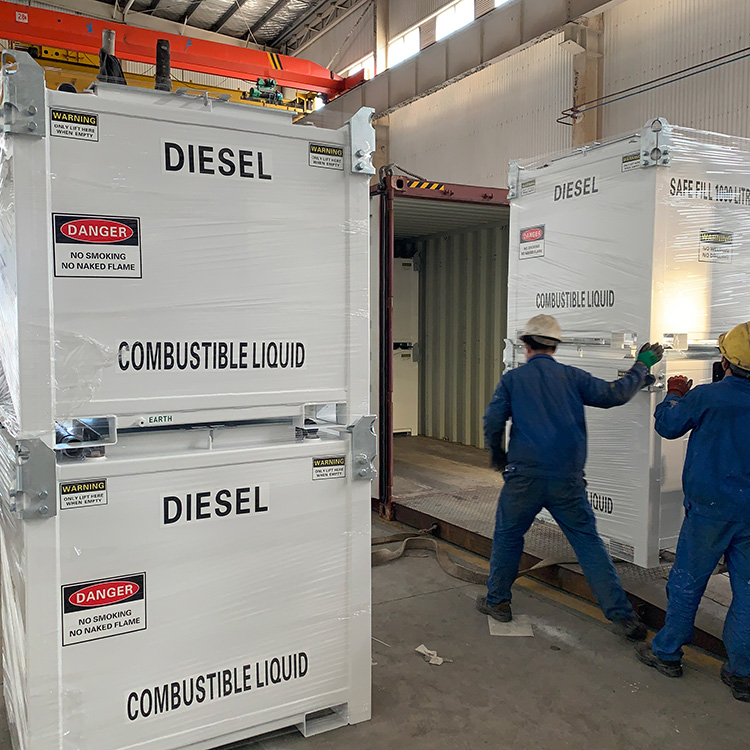

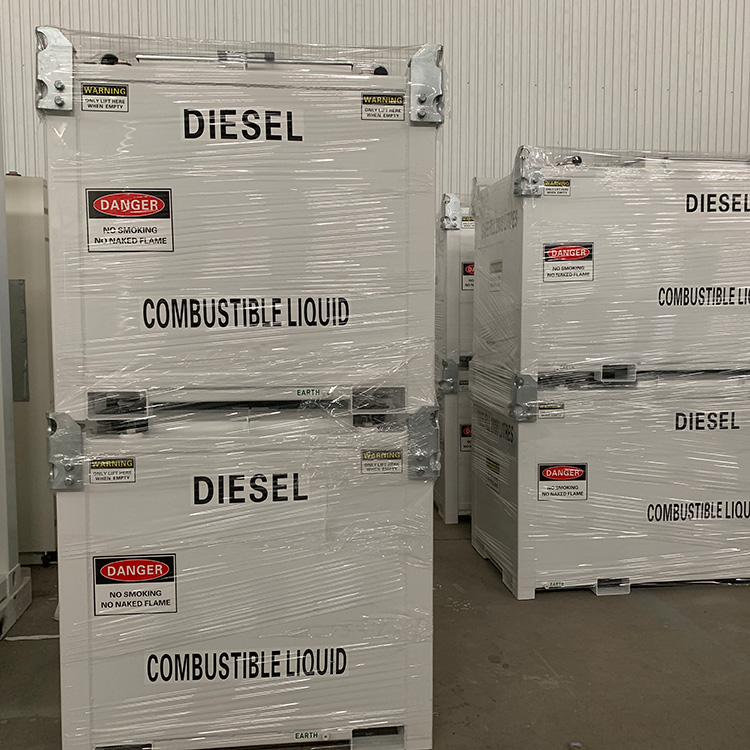

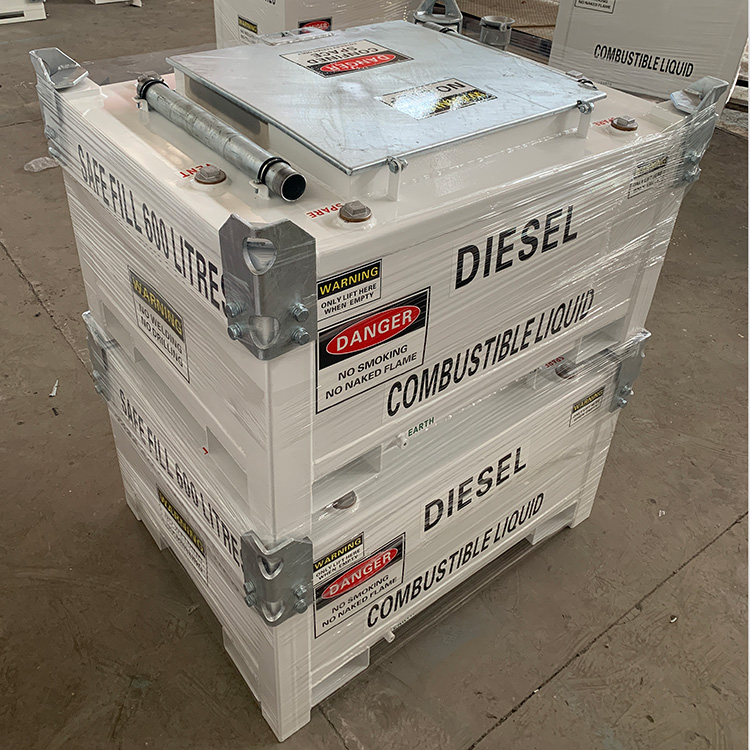

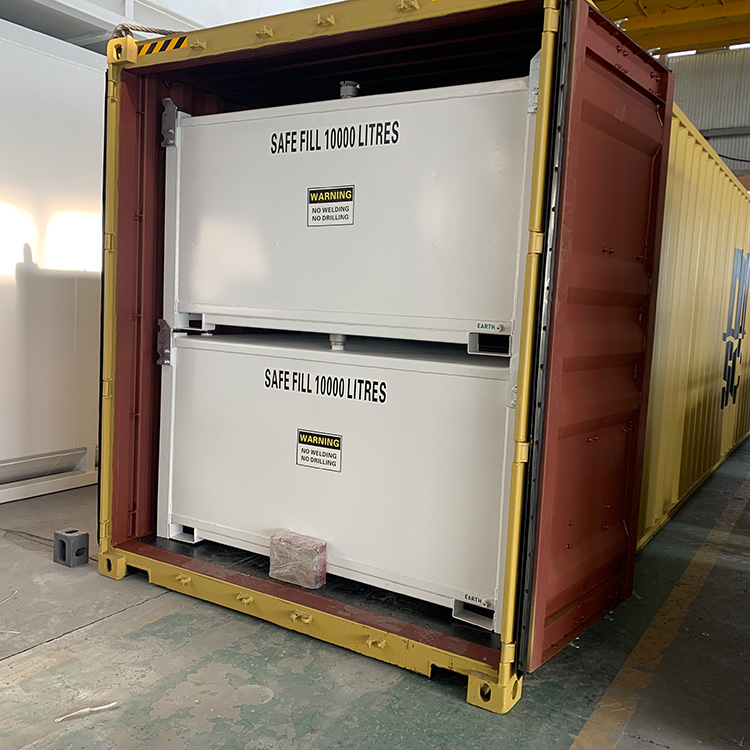

Stackable - 3-high empty and 2-high when full.
Supplied with all required statutory decals.
Movable when full (Up to and including PT6.6)
